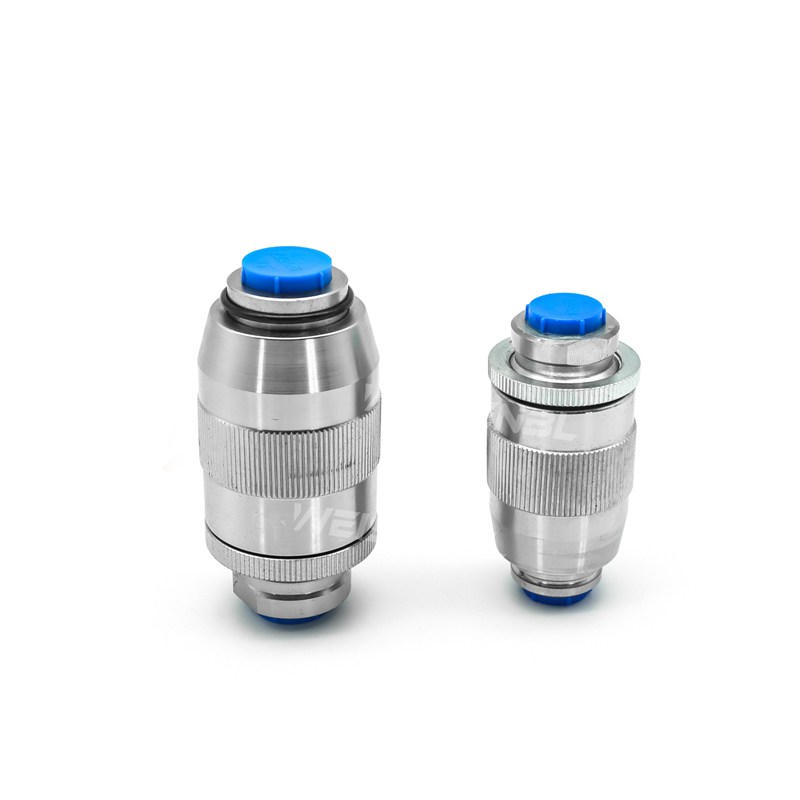

【P30】One-way Throttle Valve
| Quantity: | |
|---|---|
APPLICATIONS:
The flow restrictor valves are able toproduce a pressure drop between inlet and outlet.They are notpressure compensated so the regulated flow can change infunction of the pressure and of the viscosity.
TECHNICAL DATA:
【Material Employed】
Body：Steel
Valves: Hardened Steel
Seals: NBR
【Operational Range】
Mounting
As Prefered
【Temperatures】
Ideal operating range between +40°C C and+70°C
Max operating temperature +90°C
Min/Max environment temps -20°C and +60C°C
MODEL CODE:
① Material: SS: Stainless steel Carbon steel
② Bidirectional flow control valves series code: VURF type
③ Connection thread dimension: BBSP
Type | D | (L/min) /Max. Flow | (bar) /Max Pressure | A | B | (Bar) /Open pressure |
VURF-G1/4 | G1/4 | 12 | 320 | 62 | 21 | 0.5 |
VURF-G3/8 | G3/8 | 30 | 320 | 78 | 26 | 0.5 |
VURF-G1/2 | G1/2 | 50 | 320 | 80 | 30 | 0.5 |
VURF-G3/4 | G3/4 | 85 | 280 | 100 | 36 | 0.5 |
VURF-G1 | G1 | 120 | 250 | 118 | 41 | 0.5 |
NOTE:D can be designed according to customer requirements | ||||||

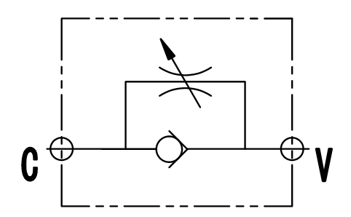

SYMABOL:

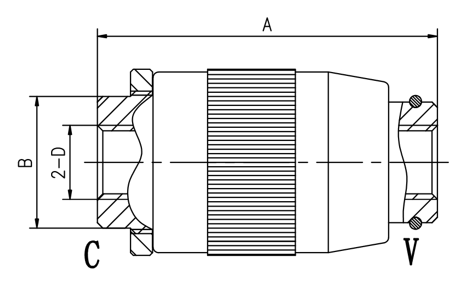

OVER DIMENSION:

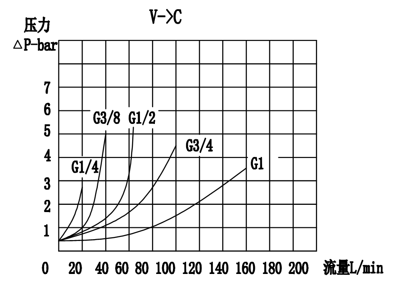

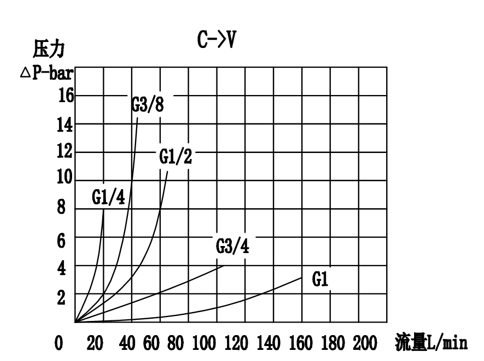

FLOW DIAGRAM:
