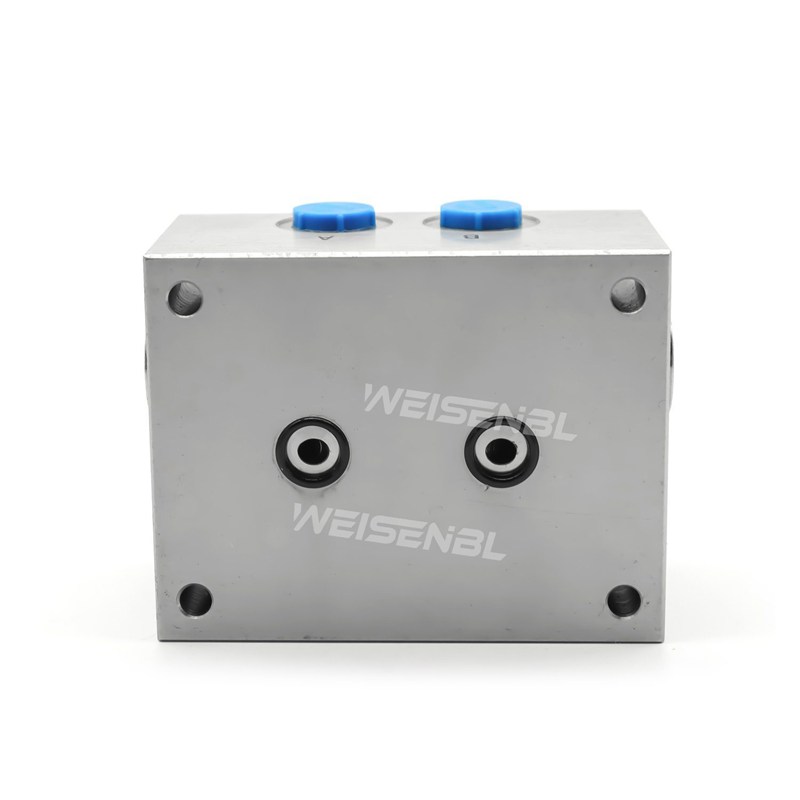

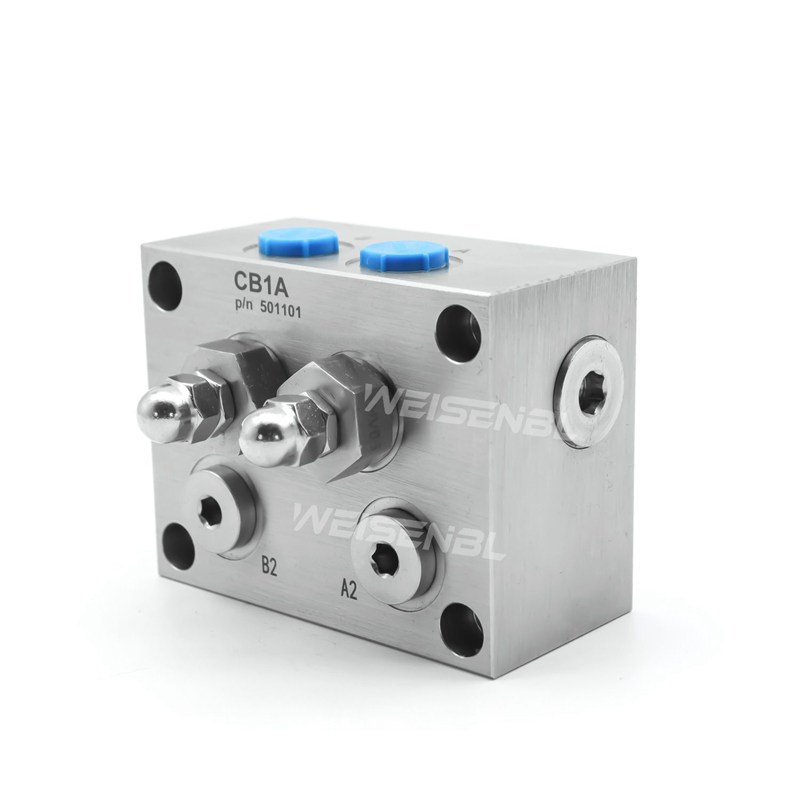

Balance Outlet Barrel Type Throttle Valve

APPLICATIONS:

The valve iscomposed of double pilot check valve and throttle valve, Double pilotcheck valve for two-way blocking actuator, fluid flow in one direction.and reverse blocking fluid until pressure, throttle valve to regulate theflow of oil outlet.

TECHNICAL DATA:

【Material Employed】

Body：Stainless steel316L

Valves: Hardened Steel

Seals: NBR

【Operational Range】

Mounting

As Prefered

【Temperatures】

Ideal operating range between +40°C C and+70°C

Max operating temperature +90°C

Min/Max environment temps -20°C and +60C°C

MODEL CODE:

① Product Serial Number

② Product Code

③ Install Way: Plate type

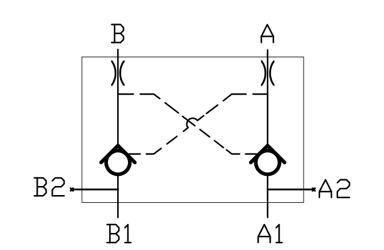

SYMABOL:

OVER DIMENSION:

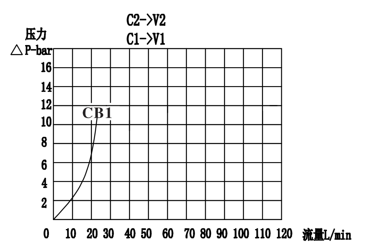

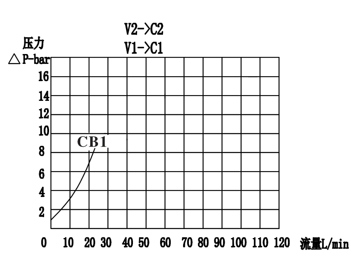

FLOW DIAGRAM:
