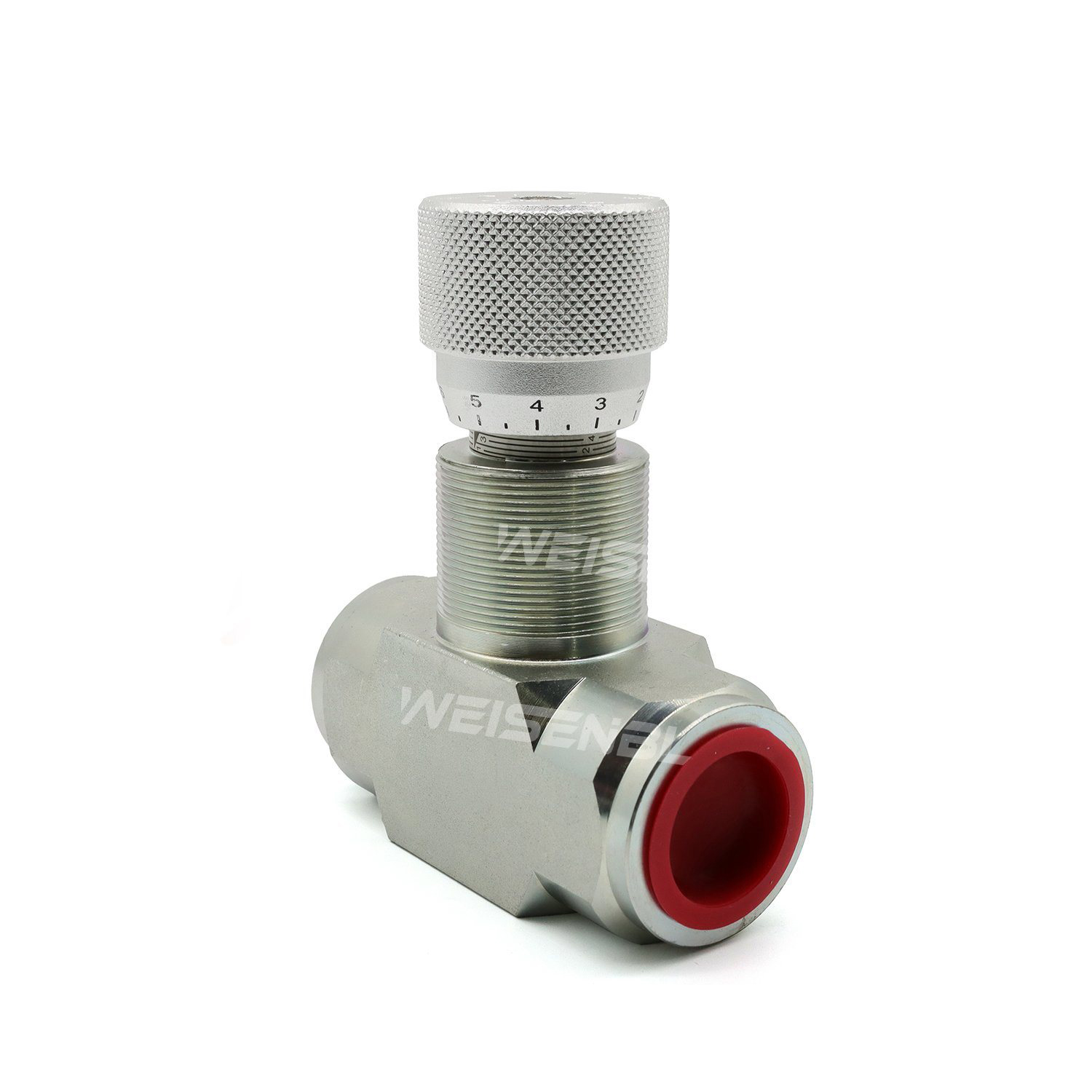

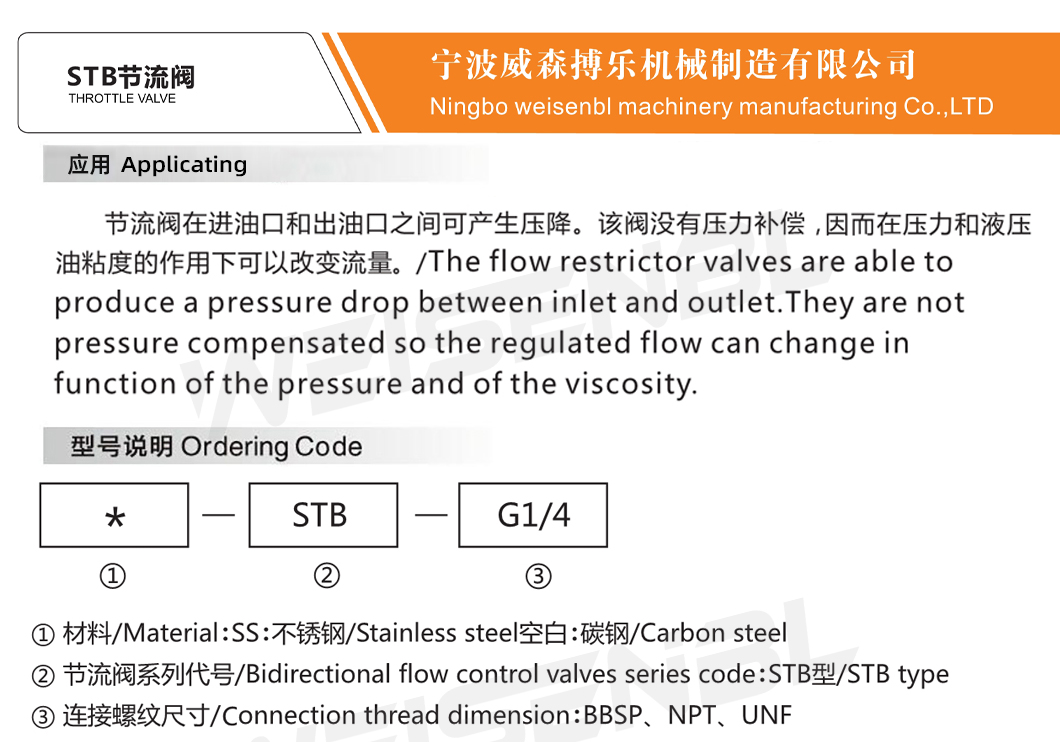

【P33】Throttle Valv
WEISENBL
| Quantity: | |
|---|---|

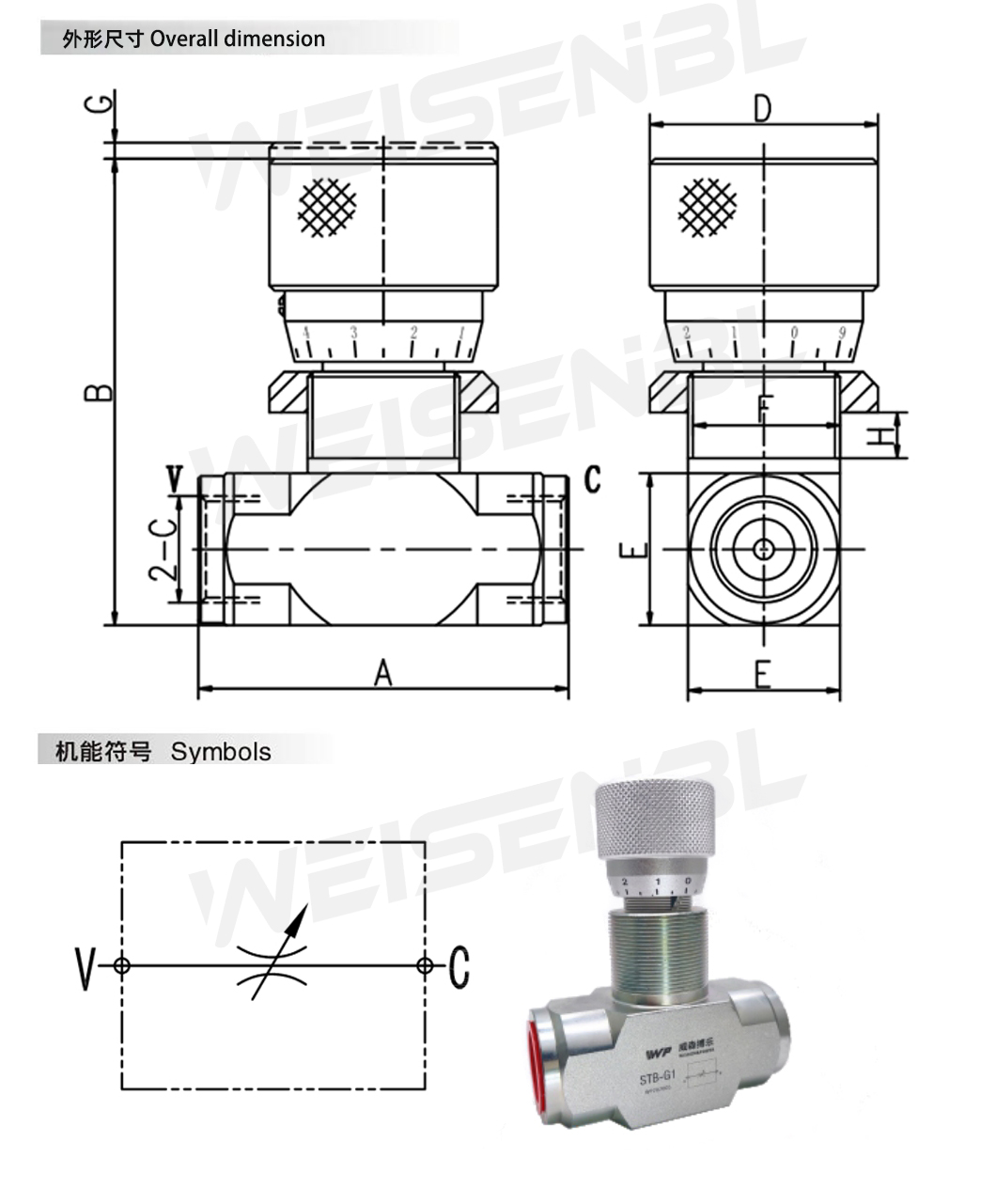

| Type | C | (L/min) Max Flow | (bar) Max Pressure | A | B | D | E | F | G | H |
| STU-G1/4 | G1/4 | 12 | 400 | 73 | 72 | 32 | 20 | M20x1 | 5 | 7 |
| STU-G3/8 | G3/8 | 30 | 400 | 82 | 80 | 32 | 25 | M25x1.5 | 9 | 7 |
| STU-G1/2 | G1/2 | 50 | 400 | 98 | 92 | 45 | 30 | M30x1.5 | 9 | 9 |
| STU-G3/4 | G3/4 | 85 | 400 | 112 | 100 | 45 | 40 | M35x1.5 | 10 | 11 |
| STU-G1 | G1 | 150 | 320 | 142 | 122 | 45 | 45 | M40x1.5 | 12 | 15 |
| Note: 1) The impacted nut at F should be purchased by another way. 2)C can be designed according to customer requirements | ||||||||||
