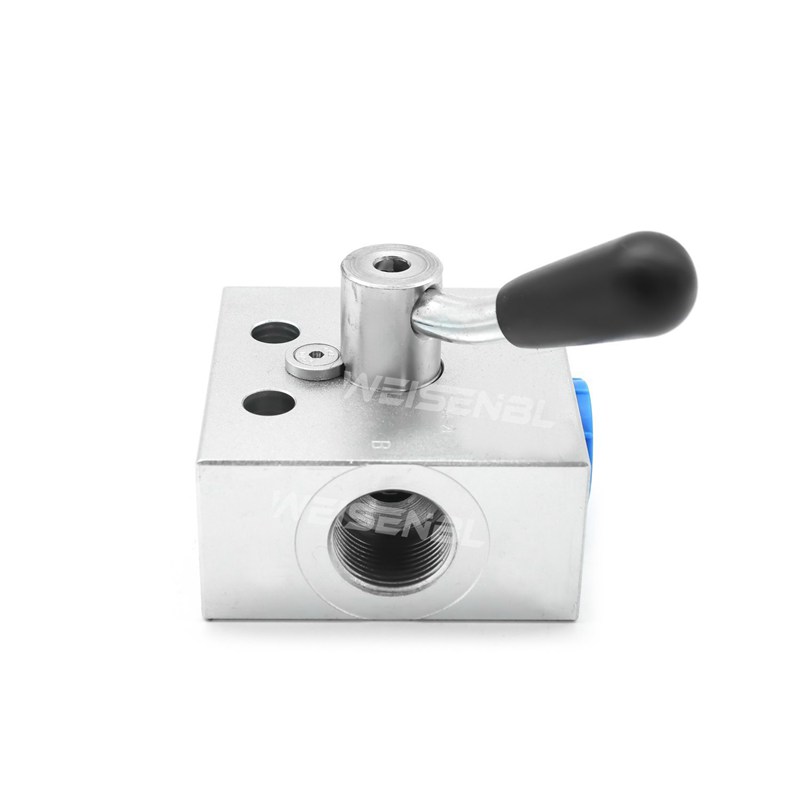

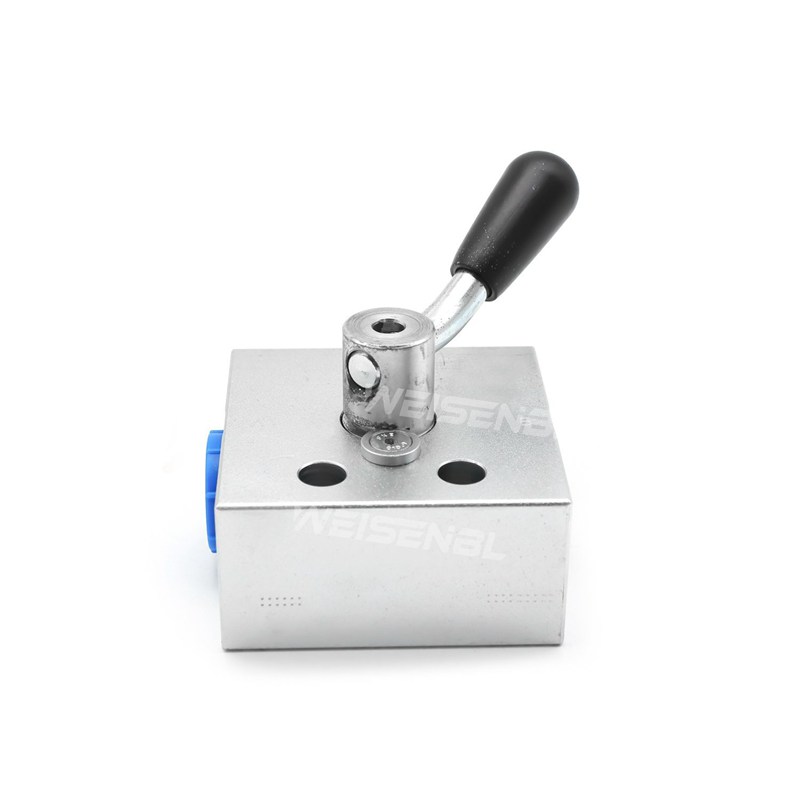

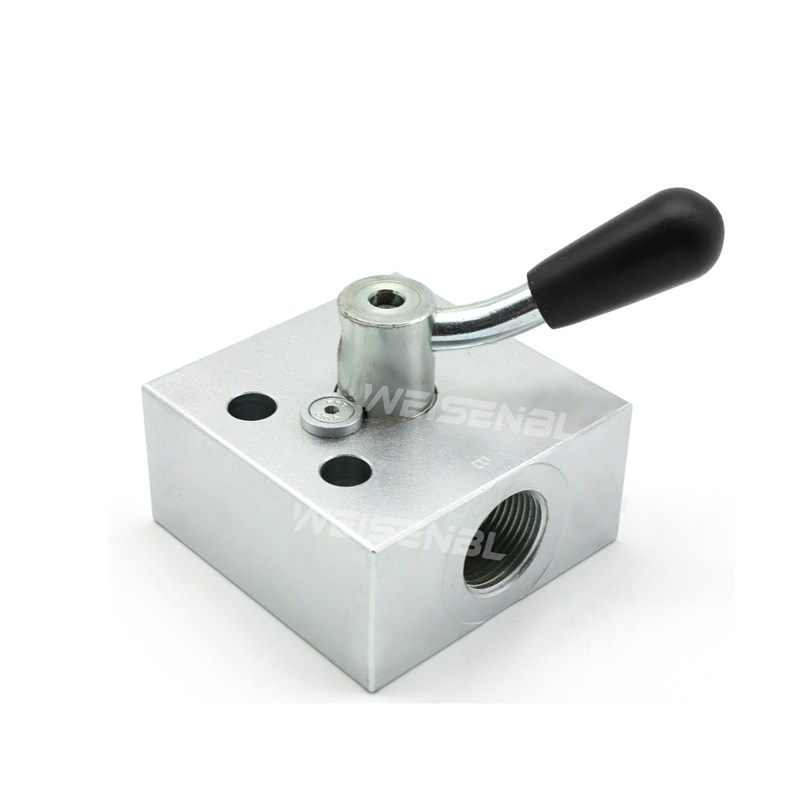

【P42】2-way, 3-position Manual Diverter Valve
| Quantity: | |
|---|---|
APPLICATIONS:
Rotate 2-position 3-way reversing valve with 2 working positions for connecting or cutting off oil lines.
TECHNICAL DATA:
【Material Employed】
Body：Steel
Valves: Hardened Steel
Seals: NBR
【Operational Range】
Mounting
As Prefered
【Temperatures】
Ideal operating range between +40°C C and+70°C
Max operating temperature +90°C
Min/Max environment temps -20°C and +60C°C
MODEL CODE:
① Product Serial Number
② Number Of Functional States
③ Number of oil ports
④ Thread specifications
⑤ Open Without Stem Median; B Closed With Stem Median
Type | (bar) /Max. Pressure | (L/min) /Max. Flow | ||||||||||||||||
DV-2/3-G3/8 | 500 | 40 | ||||||||||||||||
DV-2/3-G1/2 | 500 | 60 | ||||||||||||||||
DV-2/3-G3/4 | 500 | 100 | ||||||||||||||||
DV-2/3-G1 | 500 | 180 | ||||||||||||||||
Type | L | L1 | L2 | L3 | L4 | L5 | L6 | L7 | L8 | H | H1 | H2 | H3 | H4 | D | Y | ||
DV-2/3-G3/8 | 145 | 60 | 17 | 26 | 30 | 30 | 15 | 65 | 3 | 120 | 60 | 28 | 13 | 9 | 8.5 | G3/8 | ||
DV-2/3-G1/2 | 145 | 60 | 14 | 32 | 30 | 30 | 15 | 65 | 3 | 120 | 60 | 28 | 13 | 9 | 11 | G1/2 | ||
DV-2/3-6G3/4 | 145 | 80 | 24 | 32 | 40 | 40 | 15 | 65 | 3 | 120 | 60 | 40 | 16.25 | 14 | 11 | G3/4 | ||
DV-2/3-G1 | 145 | 80 | 24 | 32 | 40 | 40 | 15 | 65 | 3 | 120 | 60 | 40 | 16.25 | 14 | 11 | G1 | ||

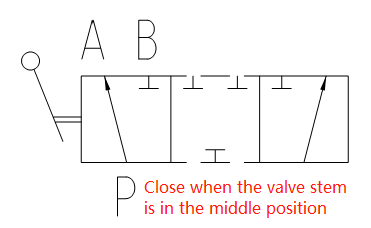

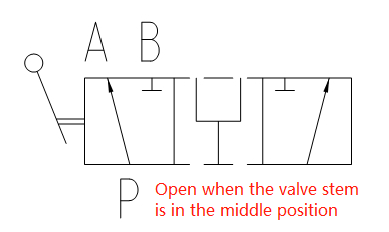

SYMABOL:

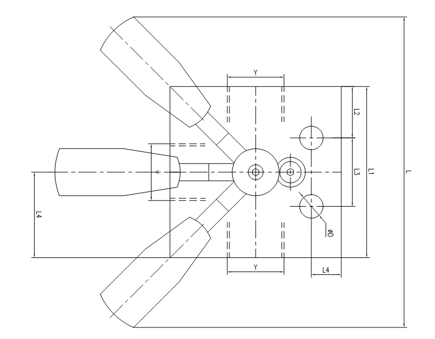

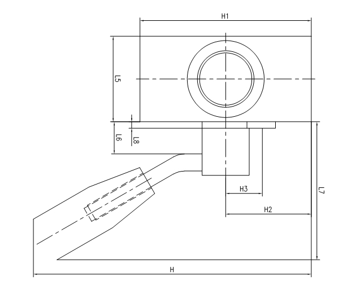

OVER DIMENSION:
