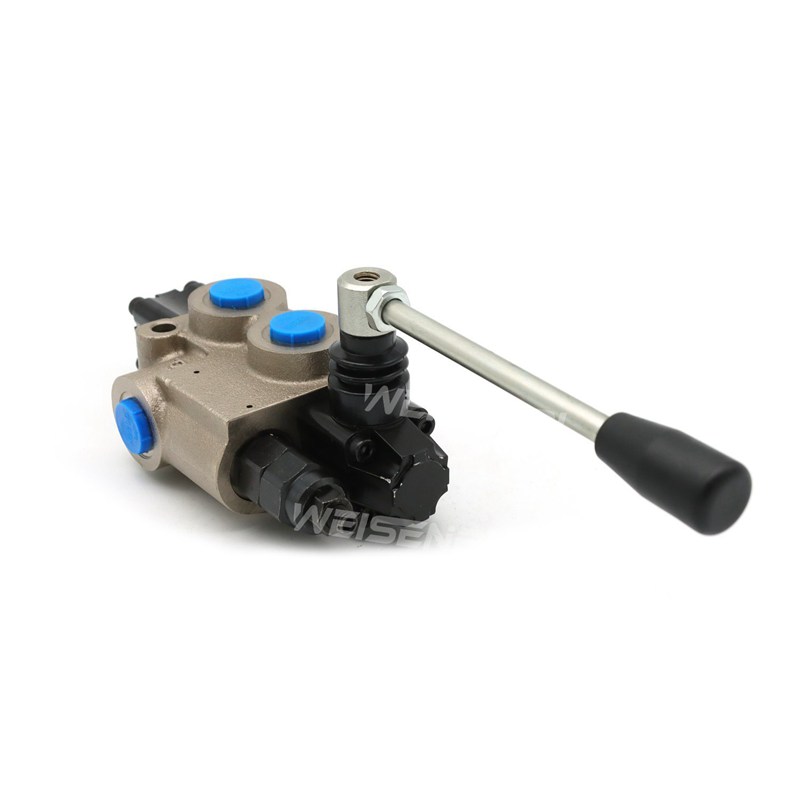

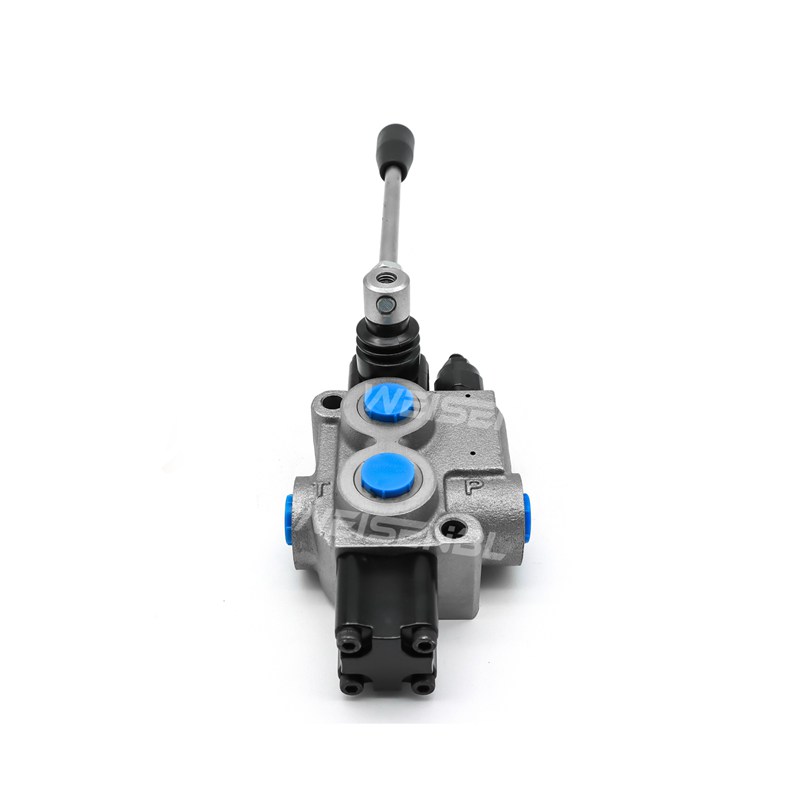

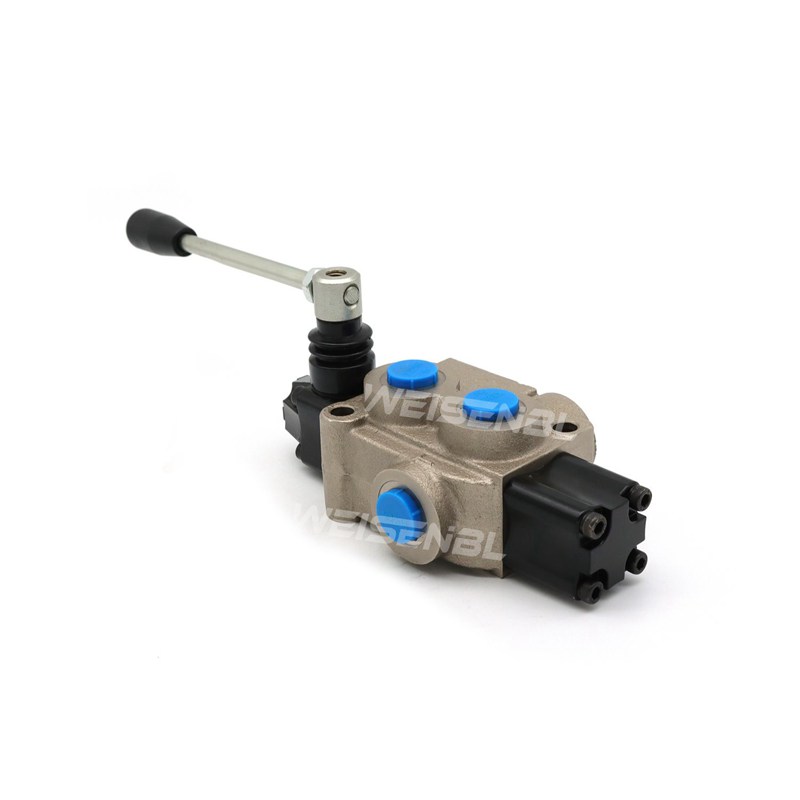

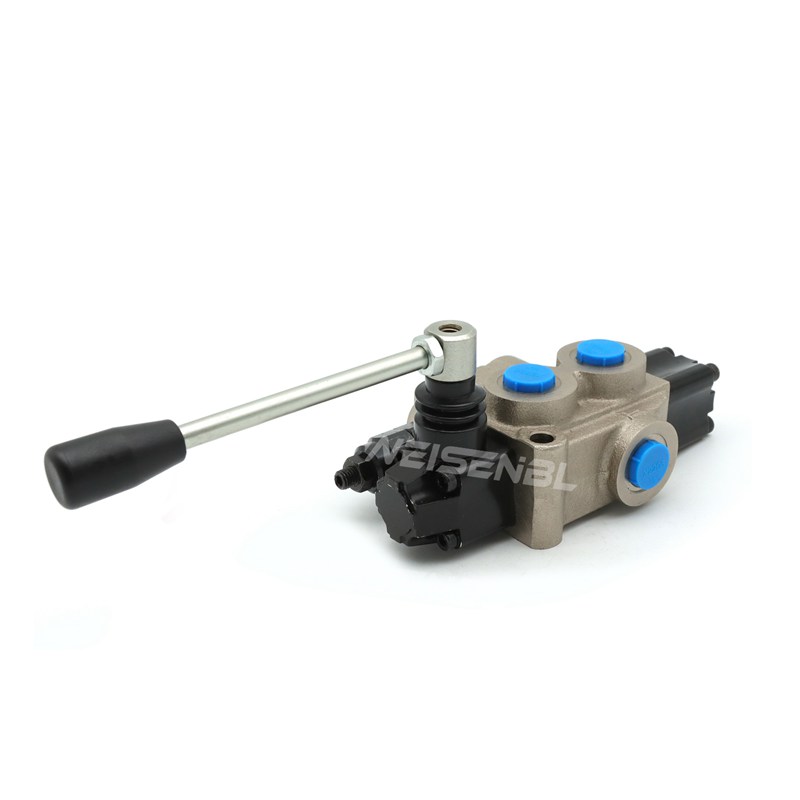

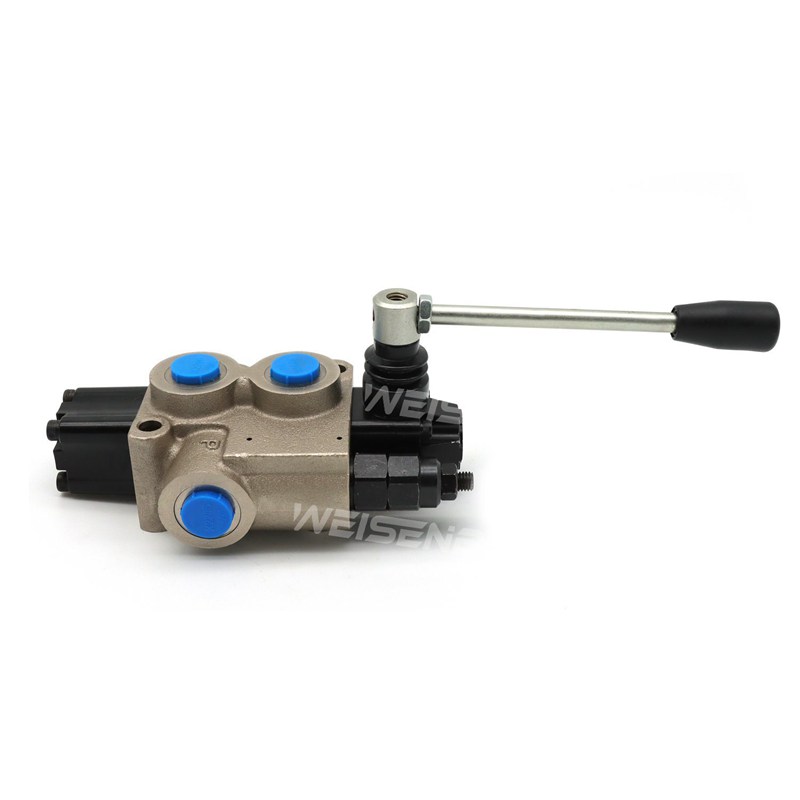

【P71】Dcv35-monoblock Valve
| Quantity: | |
|---|---|
APPLICATIONS:
This product is R&D for construction machinery or vehicles or truck with the oil cylinder to control bolster. The pilot check valve is cartridged in body. It is easy to risk the cylinder move out when the truck on driving the way.
TECHNICAL DATA:
【Material Employed】
Body：Steel
Valves: Hardened Steel
Seals: NBR
【Operational Range】
Mounting
As Prefered
【Temperatures】
Ideal operating range between +40°C C and+70°C
Max operating temperature +90°C
Min/Max environment temps -20°C and +60C°C

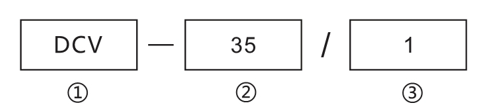

MODEL CODE:
① Monoblock directional controlvalve series code
② DN
③ Working sections
Type | (bar) /Nominal pressure | (L/min) /Maximum flow | Backpressure (bar) |
DCV 35/1 | 350 | 35 | 0-60 |

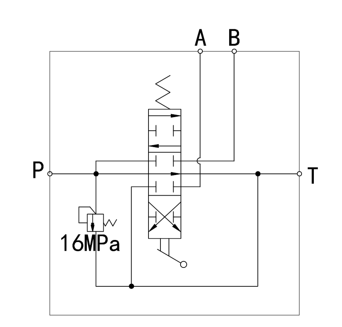

SYMABOL:
OVER DIMENSION:
