High Pressure Straight Ball Valve

Model:
【P59】High Pressure Straight Ballvalve

Quantity:
Availability:





Inquire Add to Basket

Eccentric valve

Product Description

Model code:

① Ball valve series code: KHB type

② Connection thread size: BBSP, NPT, L, S, JB984-77

③ Nominal diameter: 4, 6, 8, 10, 13, 16, 20, 25, 32, 40, 50

④ Body and joint material:

1. 45# iron 2. 304# stainless steel 3. 316# stainless steel

⑤ Ball and stem material:

1. 45# iron 2. 304# stainless steel 3. 316# stainless steel

⑥ Sphere sealing material:

1. Polyoxymethylene 2. Polytetrafluoroethylene

⑦ Valve stem and joint sealing materials:

1. Polytetrafluoroethylene 2. Nitrile rubber 3. Fluorine rubber

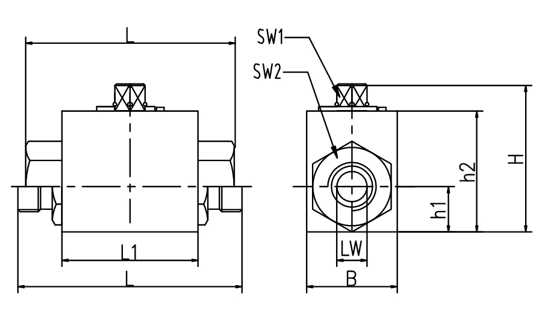

type	(bar) maximum pressure	Diameter (mm)	long wave	RA	d1	i	L	L1	B	H	h1	Hour 2	switch 1	switch 2
KHB-M16x1.5	500	6	6	11	M16x1.5	11	69	40	26	45	14	33	9	22
KHB-M22x1.5	500	8	8	16	M22x1.5	12	76	42	32	49	16	36	9	27
KHB-M27x1.5	500	10	10	20	M27x1.5	12	76	42	32	49	16	36	9	27
KHB-M30x1.5	400	16	15	24	M30x1.5	13	84	48	38	61	19	45	12	32
KHB-M36x2	315	20	20	30	M36×2	15	103	60	48	70	25	55	14	41
KHB-M42x2	315	25	25	35	M42×2	18	116	65	57	79	29	64	14	50
KHB-M52x2	315	32	30	40	M52×2	20	149	84	75	101	38	84	17	60
KHB-M60x2	315	40	38	45	M60×2	22	174	91	85	112	42	95	17	70
KHB-G1/8	500	4	6	-	G1/8	14	69	40	25	45	14	33	9	22
KHB-G1/4	500	6	6	-	G1/4	14	69	40	25	45	14	33	9	22
KHB-G3/8	500	10	10	-	G3/8	14	72	42	32	49	16	36	9	27
KHB-G1/2	500	13	12	-	G1/2	14	83	47	35	49	18	38	9	30
KHB-G1/2	400	16	15	-	G1/2	16	83	48	38	61	19	45	9	32
KHB-G3/4	315	20	20	-	G3/4	18	95	60	48	70	25	55	12	41
KHB-G1	315	25	25	-	G1	21	113	65	57	79	29	64	12	50
KHB-G1 1/4	315	32	32	-	G1 1/4	22	110	84	75	101	38	84	14	60
KHB-G1 1/2	315	40	38	-	G1 1/2	24	130	91	85	112	43	95	14	70
KHB-G2	315	50	48	-	G2	26	140	100	104	131	52	113	14	90
KHB-06LR	500	4	4	6	M12x1.5	10	67	40	26	45	14	33	9	22
KHB-08LR	500	6	6	8	M14x1.5	10	67	40	26	45	14	33	9	22
KHB-10LR	500	8	8	10	M16x1.5	11	74	42	32	49	16	36	9	27
KHB-12LR	500	10	10	12	M18x1.5	11	74	42	32	49	16	36	9	27
KHB-15LR	500	13	12	15	M22x1.5	13	82	47	35	53	18	38	9	30
KHB-15LR	500	12	12	15	M22x1.5	12	82	48	38	61	19	45	9	32
KHB-18LR	500	13	12	18	M26x1.5	13	82	47	35	53	18	38	9	30
KHB-18LR	400	16	15	18	M26×15	12	82	48	38	61	19	45	9	32
KHB-22LR	315	20	19	22	M30×2	14	101	60	48	70	25	55	9	41
KHB-28LR	315	25	25	28	M36×2	14	108	65	57	79	29	64	12	50
KHB-35LR	315	32	30	35	M45×2	16	141	84	75	101	38	84	14	60
KHB-42LR	315	40	36	42	M52×2	16	162	91	85	112	43	95	14	70
KHB-08SR	500	4	5	8	M16x1.5	12	73	40	26	45	14	33	9	22
KHB-10SR	500	6	6	10	M18x1.5	12	73	40	26	45	14	33	9	22
KHB-12SR	500	8	8	12	M20x1.5	12	76	42	32	49	16	36	9	27
KHB-14SR	500	10	10	14	M22x15	14	80	42	32	49	16	36	9	27
KHB-16SR	500	13	12	16	M24x1.5	14	86	47	35	53	18	38	9	30
KHB-16SR	500	12	12	16	M24x15	14	86	48	38	61	19	45	9	32
KHB-20SR	500	13	13	20	M30×2	16	90	47	35	53	18	38	9	30
KHB-20SR	400	16	15	20	M30×2	16	90	48	38	61	19	45	9	32
KHB-25SR	315	20	20	25	M36×2	18	109	60	48	70	25	55	12	41
KHB-30SR	315	25	25	30	M42×2	20	120	65	57	79	29	64	12	50
KHB-38SR	315	32	30	38	M52×2	22	153	84	75	101	38	84	14	60
KHB-NPT1/8	500	4	6	-	NPT1/8	11	69	35	26	45	14	33	9	22
KHB-NPT1/4	500	6	6	-	NPT1/4	11	69	35	26	45	14	33	9	22
KHB-NPT3/8	500	10	10	-	NPT3/8	11	72	42	32	49	16	36	9	27
KHB-NPT1/2	500	13	12	-	NPT1/2	14	83	47	35	49	18	38	9	30
KHB-NPT1/2	400	16	15	-	NPT1/2	14	83	48	38	61	19	45	9	32
KHB-NPT3/4	315	20	20	-	NPT3/4	18	95	60	48	70	25	55	12	41
KHB-NPT1	315	25	25	-	NPT1	21	113	65	57	79	29	64	12	50
KHB-NPTI: 1/4	315	32	32	-	NPT1 1/4	22	110	84	75	101	38	84	14	60
KHB-NPT11/2	315	40	38	-	NPT11/2	24	130	91	85	112	43	95	14	70
KHB-NPT2	315	50	48	-	NPT2	26	140	100	104	113	53	113	14	90
