【P13】Single Pilot Check Valve
WEISENBL
| Quantity: | |
|---|---|
Pilot double operating check valve with steel body pilot check valve , single check valve hydraulic lock

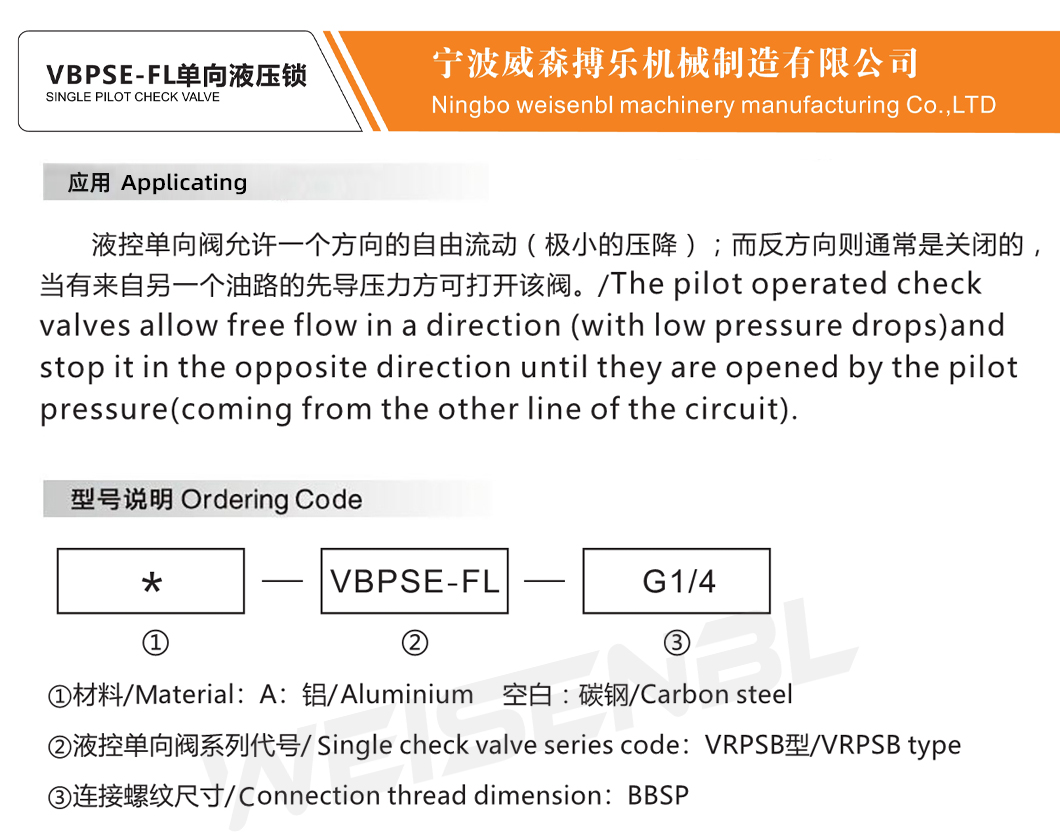

The pilot operated check valves allow free flow in a direction (with low pressure drops)and stop it in the opposite direction until they are opened by the pilot pressure(coming from the other line of the circuit).

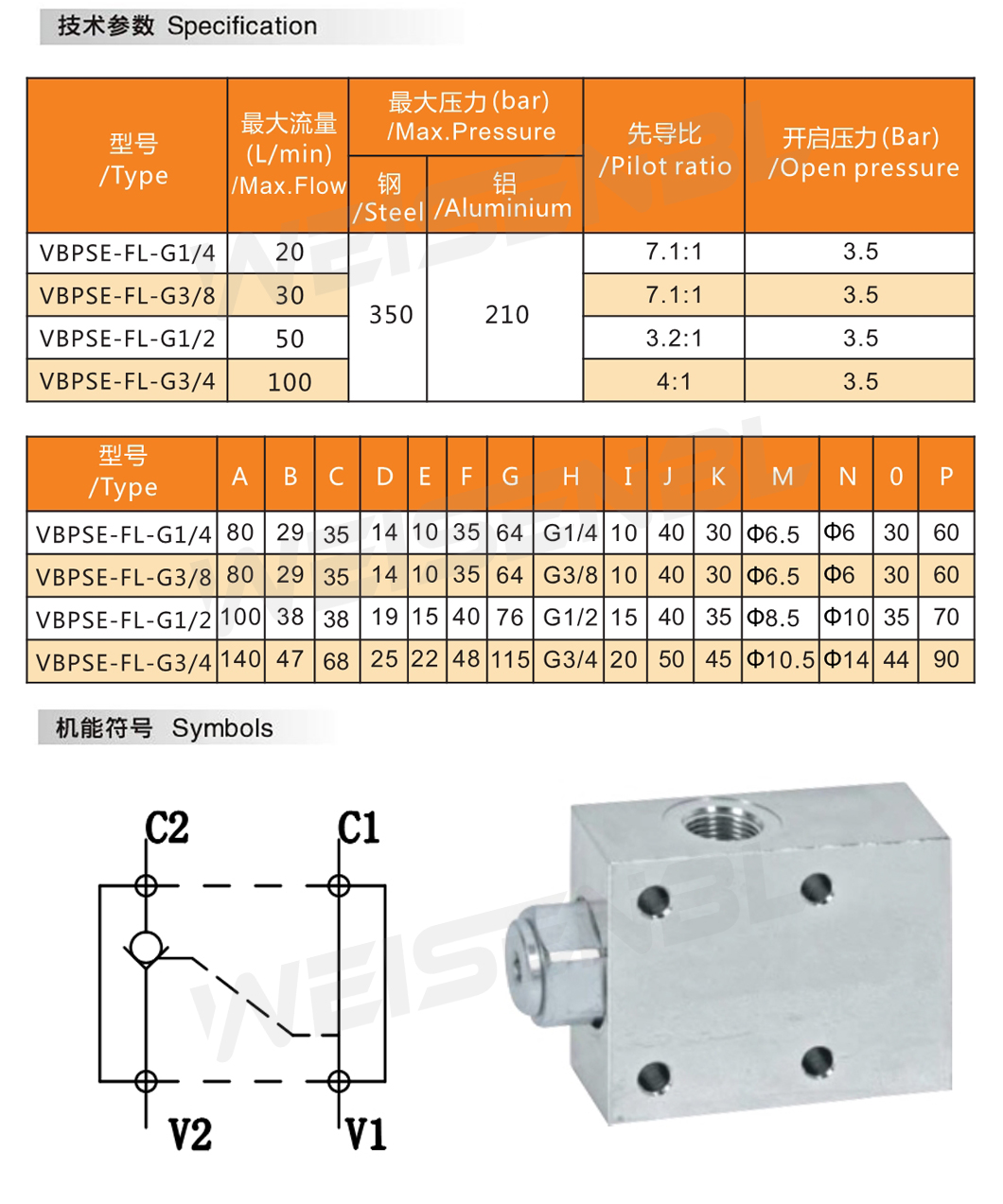

| Type | (L/min) /Max.Flow | (bar) /Max.Pressure | Pilot ratio | (Bar) /Open pressure | |
| Steel | Aluminium | ||||
| VBPSE-FL-G1/4 | 20 | 350 | 210 | 7.1:1 | 3.5 |
| VBPSE-FL-G3/8 | 30 | 7.1:1 | 3.5 | ||
| VBPSE-FL-G1/2 | 50 | 3.2:1 | 3.5 | ||
| VBPSE-FL-G3/4 | 100 | 4:1 | 3.5 | ||

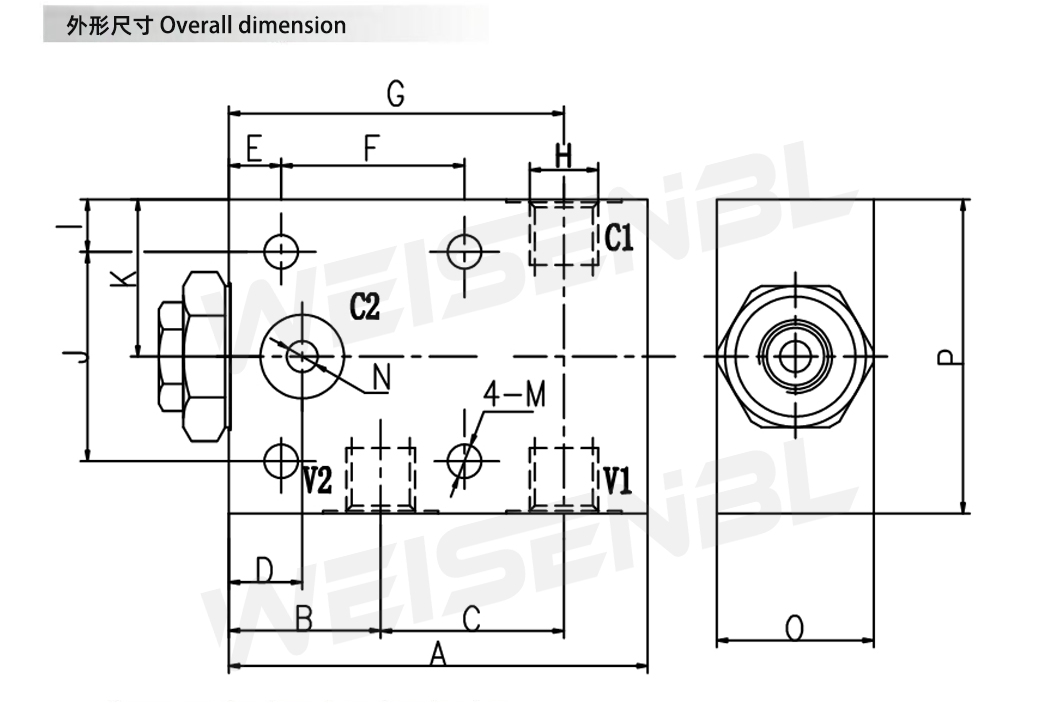

| Type | A | B | C | D | E | F | G | H | I | J | K | M | N | O | P |
| VBPSE-FL-G1/4 | 80 | 29 | 35 | 14 | 10 | 35 | 64 | G1/4 | 10 | 40 | 30 | Φ6.5 | Φ6 | 30 | 60 |
| VBPSE-FL-G3/8 | 80 | 29 | 35 | 14 | 10 | 35 | 64 | G3/8 | 10 | 40 | 30 | Φ6.5 | Φ6 | 30 | 60 |
| VBPSE-FL-G1/2 | 100 | 38 | 38 | 19 | 15 | 40 | 76 | G1/2 | 15 | 40 | 35 | Φ8.5 | Φ10 | 35 | 70 |
| VBPSE-FL-G3/4 | 140 | 47 | 68 | 25 | 22 | 48 | 115 | G3/4 | 20 | 50 | 45 | Φ10.5 | Φ14 | 44 | 90 |
