【P57】VSQL-tube sequence valve
| Quantity: | |
|---|---|
application:
The tubular sequence valve is used to supply fluid to two cylinders sequentially. When the primary circuit function completes the pressure setting, it supplies fluid to the secondary circuit and returns freely.Insensitive to back pressure, it allows circuit pressure to be used to control both drivers.
Technical data:
【Material used】
Body: steel
Valve: Hardened Steel
Seals: Nitrile rubber
【Scope of work】
Install
as first choice
【temperature】
Ideal operating range +40°C to +70°C
Maximum operating temperature +90°C
Minimum/maximum ambient temperature -20°C and +60C°C
Model code:
① Sequence valve serial number
② Thread specifications
type | Pressure range (bar) | Standard settings (bar) | Maximum working pressure (bar) | Flow Q.max (L/Min) |
VSQL-G3/8 | 30-120 | 80 | 350 | 40 |
VSQL-G1/2 | 30-120 | 80 | 350 | 80 |
type | A | L | S | E |
VSQL-G3/8 | G3/8 | 97 | 27 | 31 |
VSQL-G1/2 | G1/2 | 124 | 32 | 37 |

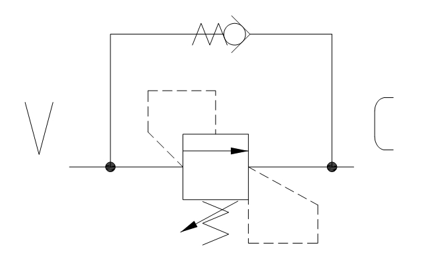

symbol:

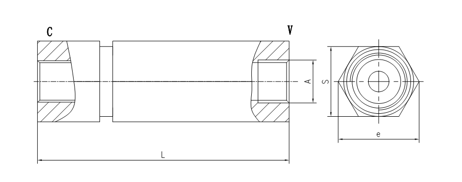

Oversize:

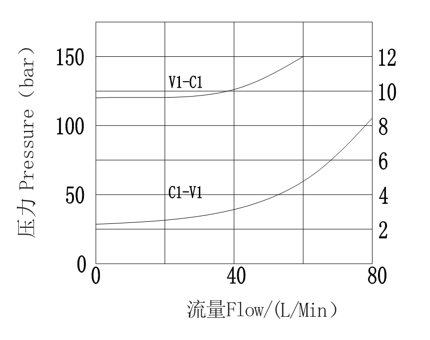

flow chart:
