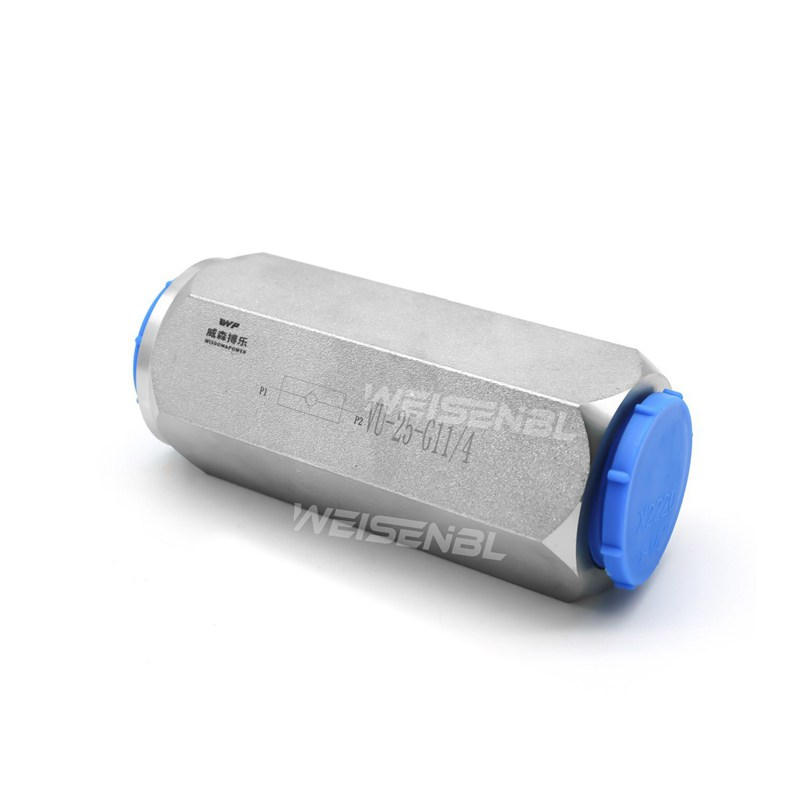

【P47】S-check Value
WEISENBL
| Quantity: | |
|---|---|
APPLICATIONS:
Check valve Allows Hydraulic Oil to Flow In One Direction To Avoid Reverse Flow. When The One way Valve Is Installed At The Outlet Of The Pump, It Can Prevent Damage To The Pump When The System Pressure Suddenly Increases，Play A Role In Stopping The Return
TECHNICAL DATA:
【Material Employed】
Body：Steel
Valves: Hardened Steel
Seals: NBR
【Operational Range】
Mounting
As Prefered
【Temperatures】
Ideal operating range between +40°C C and+70°C
Max operating temperature +90°C
Min/Max environment temps -20°C and +60C°C

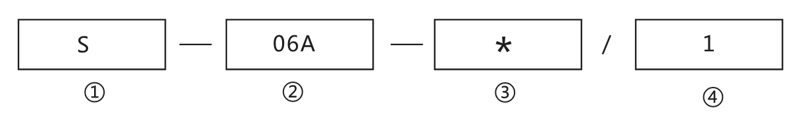

MODEL CODE:
① Check Valve series code
② Diameter size
③ Open pressure:0= No Spring、1=0.5bar、2=1.5bar、3=3bar
④ Thread dimension:1= M、2= BBSP
DN | Type | Dimension ( mm ) | ||||
L | E | S | T | M | ||
06 | S-06A*/1 | 58 | 22 | 19 | 12 | M14x1.5 |
S-06A*/2 | G 1/4" | |||||
08 | S-08A*/1 | 58 | 28 | 24 | 12 | M18x1.5 |
S-08A*/2 | G 3/8" | |||||
10 | S-10A*/1 | 72 | 34.5 | 30 | 14 | M22x1.5 |
S-10A*/2 | G 1/2" | |||||
15 | S-15A*/1 | 85 | 41.5 | 36 | 16 | M27x2 |
S-15A*/2 | G 3/4" | |||||
20 | S-20A*/1 | 98 | 53 | 46 | 18 | M33x2 |
S-20A*/2 | G 1" | |||||
25 | S-25A*/1 | 120 | 69 | 60 | 20 | M42x2 |
S-25A*/2 | G 11/4" | |||||
30 | S-30A*/1 | 132 | 75 | 65 | 22 | M48x2 |
S-30A*/2 | G 1 1/2" | |||||

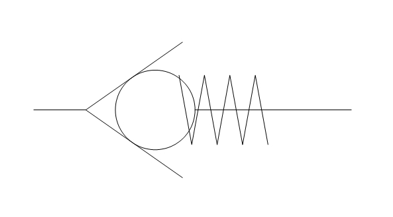

SYMABOL:

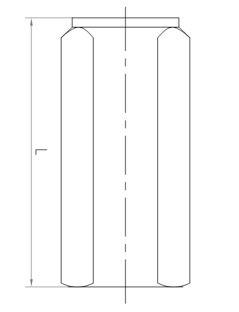

OVER DIMENSION:
